Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated current10A
Release characteristicC
Voltage typeAC
Rated voltage400V
Current limiting class-
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Built-in depth47mm
Pollution degree3
Connectable conductor cross section multi-wired1.5 - 35mm²
Number of protected poles2
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Width in number of modular spacings3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Over voltage category-
Connectable conductor cross section solid-core1.5 - 50mm²
Number of poles (total)2
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

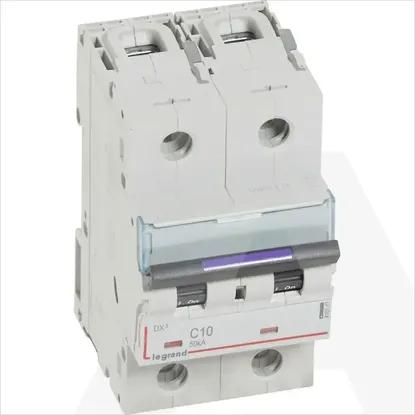

410147 | AUT.OSIG. DX3 2P C10 50KA
