Details

  • •Circuit breakers and fuses

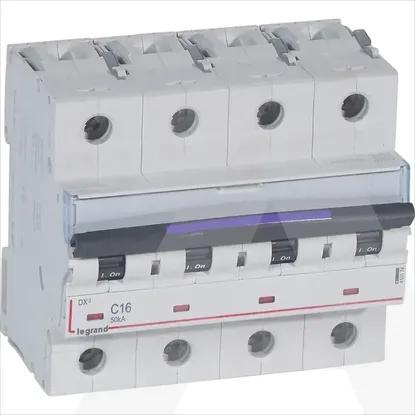

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Built-in depth47mm
Voltage typeAC
Over voltage category-
Current limiting class-
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Pollution degree3
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Number of protected poles3
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Width in number of modular spacings6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Concurrently switching neutral conductorYes
Additional equipment possibleYes
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section multi-wired1.5 - 35mm²
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section solid-core1.5 - 50mm²
Rated current16A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
