Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Built-in depth47mm
Rated voltage400V
Rated current40A
Voltage typeAC
Frequency50 - 60Hz
Number of protected poles3
Release characteristicD
Current limiting class-
Connectable conductor cross section multi-wired1.5 - 35mm²
Rated insulation voltage Ui500V
Rated impulse withstand voltage Uimp6kV
Concurrently switching neutral conductorYes
Number of poles (total)4
Connectable conductor cross section solid-core1.5 - 50mm²
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Over voltage category-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Degree of protection (IP)IP20
Width in number of modular spacings6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Pollution degree3
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

410230 | AUT.OSIG. DX3 4P D40 50KA

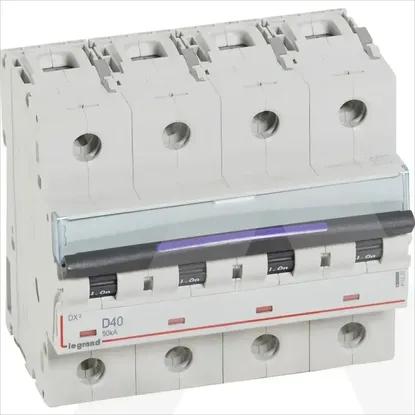

Main Product Image
