Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Nominal current63A
Rated insulation voltage Ui500V
Delay adjustableNo
Number of poles2
Rated fault current0.03 - 0.03A
Leakage current typeF
Pollution degree2
Nominal voltage170 - 253V
Frequency50 Hz
Max. delay time0ms
Surge current capacity-kA
Connectable conductor cross section solid-core1.5 - 35mm²
With interlocking deviceYes
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 70°C
Rated fault current adjustableNo
Anti-nuisance tripping versionYes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

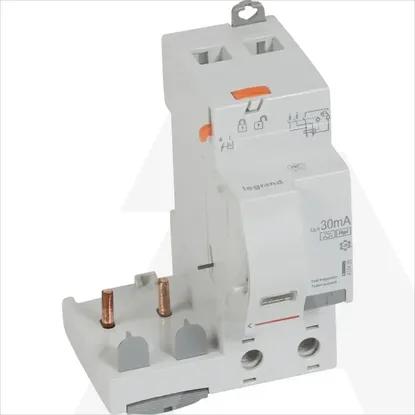

410435 | DIF.MOD.DX3 2P 63A HPI 30MA
