Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Frequency50 Hz
Max. delay time40ms
Connectable conductor cross section solid-core1.5 - 35mm²
Surge current capacity-kA
Rated fault current1 - 1A
Ambient temperature during operating-25 - 70°C
Number of poles2
Nominal current63A
Leakage current typeF
Rated insulation voltage Ui500V
Delay adjustableNo
Nominal voltage170 - 253V
With interlocking deviceYes
Pollution degree2
Connectable conductor cross section multi-wired1.5 - 25mm²
Degree of protection (IP)IP20
Rated fault current adjustableNo
Rated impulse withstand voltage Uimp4kV
Anti-nuisance tripping versionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

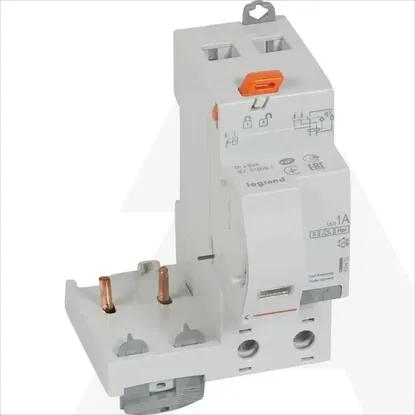

410462 | DX3 FID 2P 63A HPI-S 1000MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Frequency
50 Hz
Max. delay time
40ms
Connectable conductor cross section solid-core
1.5 .. 35mm²
Surge current capacity
-kA
Rated fault current
1 .. 1A
Ambient temperature during operating
-25 .. 70°C
Number of poles
2
Nominal current
63A
Leakage current type
F
Rated insulation voltage Ui
500V
Delay adjustable
Nominal voltage
170 .. 253V
With interlocking device
Pollution degree
2
Connectable conductor cross section multi-wired
1.5 .. 25mm²
Degree of protection (IP)
IP20
Rated fault current adjustable
Rated impulse withstand voltage Uimp
4kV
Anti-nuisance tripping version
