Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeA
Delay adjustableNo
Surge current capacity-kA
Nominal current40A
Max. delay time0ms
Number of poles4
Rated insulation voltage Ui500V
Rated fault current adjustableNo
Nominal voltage250 - 440V
Pollution degree2
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 70°C
Frequency50 Hz
Connectable conductor cross section multi-wired1.5 - 25mm²
Anti-nuisance tripping versionNo
Rated fault current0.03 - 0.03A
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

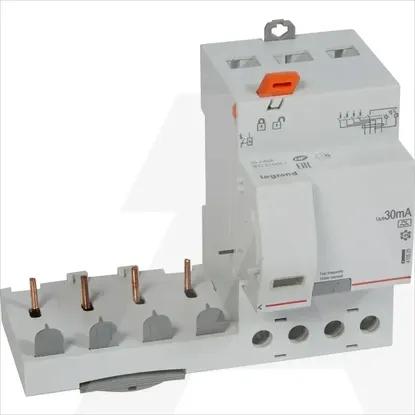

410525 | DIF.MOD.DX3 4P 40A A 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Leakage current type
A
Delay adjustable
Surge current capacity
-kA
Nominal current
40A
Max. delay time
0ms
Number of poles
4
Rated insulation voltage Ui
500V
Rated fault current adjustable
Nominal voltage
250 .. 440V
Pollution degree
2
Connectable conductor cross section solid-core
1.5 .. 35mm²
Rated impulse withstand voltage Uimp
4kV
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 .. 70°C
Frequency
50 Hz
Connectable conductor cross section multi-wired
1.5 .. 25mm²
Anti-nuisance tripping version
Rated fault current
0.03 .. 0.03A
With interlocking device
