Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Nominal current63A
Rated insulation voltage Ui500V
Number of poles4
Leakage current typeF
Surge current capacity-kA
Delay adjustableNo
Pollution degree2
Max. delay time0ms
Rated fault current0.03 - 0.03A
Nominal voltage250 - 440V
Frequency50 Hz
With interlocking deviceYes
Rated fault current adjustableNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 35mm²
Ambient temperature during operating-25 - 70°C
Rated impulse withstand voltage Uimp4kV
Anti-nuisance tripping versionYes
Connectable conductor cross section multi-wired1.5 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

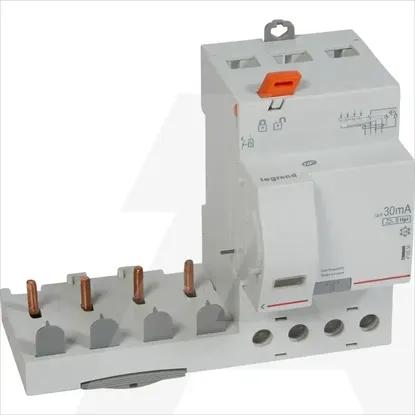

410534 | DIF.MOD.DX3 4P 63A HPI 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Nominal current
63A
Rated insulation voltage Ui
500V
Number of poles
4
Leakage current type
F
Surge current capacity
-kA
Delay adjustable
Pollution degree
2
Max. delay time
0ms
Rated fault current
0.03 .. 0.03A
Nominal voltage
250 .. 440V
Frequency
50 Hz
With interlocking device
Rated fault current adjustable
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1.5 .. 35mm²
Ambient temperature during operating
-25 .. 70°C
Rated impulse withstand voltage Uimp
4kV
Anti-nuisance tripping version
Connectable conductor cross section multi-wired
1.5 .. 25mm²
