Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Nominal current63A
Leakage current typeF
Connectable conductor cross section solid-core1.5 - 35mm²
Surge current capacity-kA
Max. delay time40ms
Delay adjustableNo
Ambient temperature during operating-25 - 70°C
With interlocking deviceYes
Connectable conductor cross section multi-wired1.5 - 25mm²
Number of poles4
Pollution degree2
Rated fault current0.3 - 0.3A
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui500V
Frequency50 Hz
Rated fault current adjustableNo
Degree of protection (IP)IP20
Nominal voltage250 - 440V
Anti-nuisance tripping versionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

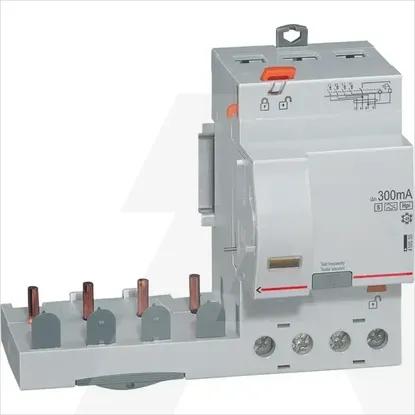

410555 | DIF.MOD.DX3 4P 63A HPI-S 300MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Nominal current
63A
Leakage current type
F
Connectable conductor cross section solid-core
1.5 .. 35mm²
Surge current capacity
-kA
Max. delay time
40ms
Delay adjustable
Ambient temperature during operating
-25 .. 70°C
With interlocking device
Connectable conductor cross section multi-wired
1.5 .. 25mm²
Number of poles
4
Pollution degree
2
Rated fault current
0.3 .. 0.3A
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
500V
Frequency
50 Hz
Rated fault current adjustable
Degree of protection (IP)
IP20
Nominal voltage
250 .. 440V
Anti-nuisance tripping version
