Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Nominal current125A
Degree of protection (IP)IP20
Leakage current typeAC
Number of poles2
Frequency50 Hz
Delay adjustableNo
With interlocking deviceYes
Rated fault current0.3 - 0.3A
Connectable conductor cross section multi-wired1.5 - 50mm²
Pollution degree2
Anti-nuisance tripping versionNo
Rated insulation voltage Ui500V
Connectable conductor cross section solid-core1.5 - 70mm²
Rated fault current adjustableNo
Surge current capacity-kA
Rated impulse withstand voltage Uimp6kV
Ambient temperature during operating-25 - 70°C
Nominal voltage170 - 253V
Max. delay time0ms
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

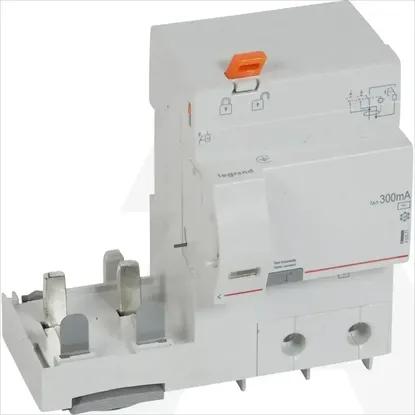

410571 | DIF.MOD.DX3 2P 125A AC 300MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Nominal current
125A
Degree of protection (IP)
IP20
Leakage current type
AC
Number of poles
2
Frequency
50 Hz
Delay adjustable
With interlocking device
Rated fault current
0.3 .. 0.3A
Connectable conductor cross section multi-wired
1.5 .. 50mm²
Pollution degree
2
Anti-nuisance tripping version
Rated insulation voltage Ui
500V
Connectable conductor cross section solid-core
1.5 .. 70mm²
Rated fault current adjustable
Surge current capacity
-kA
Rated impulse withstand voltage Uimp
6kV
Ambient temperature during operating
-25 .. 70°C
Nominal voltage
170 .. 253V
Max. delay time
0ms
