Details
- •Circuit breakers and fuses

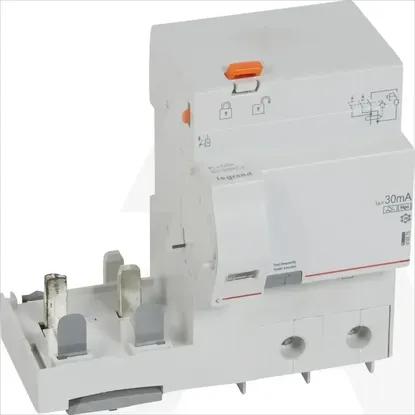

- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Max. delay time0ms
Leakage current typeF
Delay adjustableNo
Rated fault current0.03 - 0.03A
Surge current capacity-kA
Nominal current125A
Rated insulation voltage Ui500V
Pollution degree3
Number of poles2
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 70mm²
Nominal voltage170 - 253V
Frequency50 Hz
Anti-nuisance tripping versionYes
With interlocking deviceYes
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section multi-wired1.5 - 50mm²
Ambient temperature during operating-25 - 70°C
Rated fault current adjustableNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
410578 | DIF.MOD.DX3 2P 125A HPI 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Max. delay time
0ms
Leakage current type
F
Delay adjustable
Rated fault current
0.03 .. 0.03A
Surge current capacity
-kA
Nominal current
125A
Rated insulation voltage Ui
500V
Pollution degree
3
Number of poles
2
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1.5 .. 70mm²
Nominal voltage
170 .. 253V
Frequency
50 Hz
Anti-nuisance tripping version
With interlocking device
Rated impulse withstand voltage Uimp
6kV
Connectable conductor cross section multi-wired
1.5 .. 50mm²
Ambient temperature during operating
-25 .. 70°C
Rated fault current adjustable
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
