Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui500V
Nominal current63A
Number of poles2
Delay adjustableYes
Max. delay time150ms
Leakage current typeF
Pollution degree3
Nominal voltage170 - 253V
Rated fault current adjustableYes
Frequency50 Hz
Ambient temperature during operating-25 - 70°C
Surge current capacity-kA
Degree of protection (IP)IP20
Rated fault current0.3 - 1A
Anti-nuisance tripping versionYes
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1.5 - 35mm²
Connectable conductor cross section solid-core1.5 - 50mm²
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

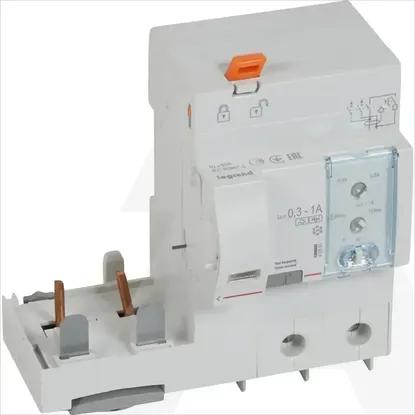

410583 | DIF.MOD.DX3 2P 63A HPI REG
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
500V
Nominal current
63A
Number of poles
2
Delay adjustable
Max. delay time
150ms
Leakage current type
F
Pollution degree
3
Nominal voltage
170 .. 253V
Rated fault current adjustable
Frequency
50 Hz
Ambient temperature during operating
-25 .. 70°C
Surge current capacity
-kA
Degree of protection (IP)
IP20
Rated fault current
0.3 .. 1A
Anti-nuisance tripping version
Rated impulse withstand voltage Uimp
4kV
Connectable conductor cross section multi-wired
1.5 .. 35mm²
Connectable conductor cross section solid-core
1.5 .. 50mm²
With interlocking device
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
