Details
- •Circuit breakers and fuses

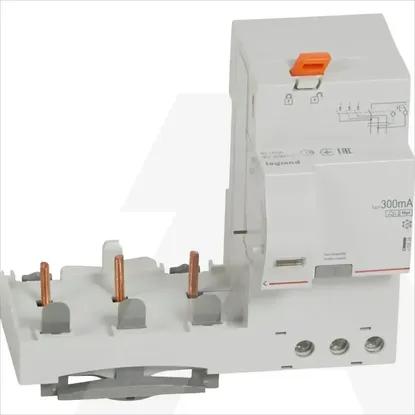

- •Residual current circuit breaker (RCCB) module
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Delay adjustableNo
Max. delay time0ms
Surge current capacity-kA
Pollution degree3
Nominal voltage250 - 440V
Rated fault current adjustableNo
Anti-nuisance tripping versionYes
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IP20
With interlocking deviceYes
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1.5 - 25mm²
Frequency50 Hz
Rated insulation voltage Ui500V
Nominal current63A
Number of poles3
Leakage current typeF
Rated fault current0.3 - 0.3A
