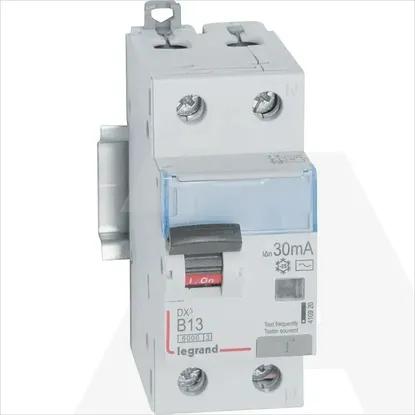

410920 | KZS DX3 1P+N B13 10KA AC 30MA
Code: 1778753
ManufacturerLegrand
Catalog number410920
TypeLegrand 410920
CategoryEarth leakage circuit breaker
EAN code3414970351203
Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Over voltage category-
Surge current capacity0.25kA
Current limiting class3
Release characteristicB
Rated voltage230V
Built-in depth44mm
Rated insulation voltage Ui-V
Voltage typeAC
Degree of protection (IP)IP20
Pollution degree2
Frequency50 Hz
Number of protected poles1
Width in number of modular spacings2
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Connectable conductor cross section solid-core0.75 - 16mm²
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Suitable for flush-mounted installationYes
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Rated current13A
Rated fault current0.03A
Leakage current typeAC
Number of poles (total)2
