Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui-V
Release characteristicB
Built-in depth44mm
Degree of protection (IP)IP20
Rated current16A
Rated voltage230V
Rated fault current0.03A
Current limiting class3
Width in number of modular spacings2
Over voltage category-
Number of protected poles1
Surge current capacity0.25kA
Pollution degree2
Leakage current typeAC
Frequency50 Hz
Voltage typeAC
Connectable conductor cross section solid-core0.75 - 16mm²
Concurrently switching neutral conductorYes
Ambient temperature during operating-25 - 70°C
Anti-nuisance tripping versionNo
Suitable for flush-mounted installationYes
Number of poles (total)2
Rated short-circuit breaking capacity according to IEC 60947-26kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

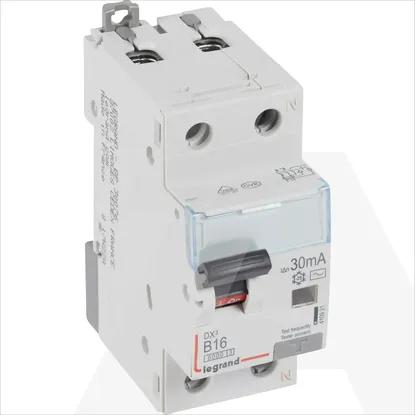

410921 | KZS DX3 1P+N B16 10KA AC 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
-V
Release characteristic
B
Built-in depth
44mm
Degree of protection (IP)
IP20
Rated current
16A
Rated voltage
230V
Rated fault current
0.03A
Current limiting class
3
Width in number of modular spacings
2
Over voltage category
-
Number of protected poles
1
Surge current capacity
0.25kA
Pollution degree
2
Leakage current type
AC
Frequency
50 Hz
Voltage type
AC
Connectable conductor cross section solid-core
0.75 .. 16mm²
Concurrently switching neutral conductor
Ambient temperature during operating
-25 .. 70°C
Anti-nuisance tripping version
Suitable for flush-mounted installation
Number of poles (total)
2
Rated short-circuit breaking capacity according to IEC 60947-2
6kA
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Rated impulse withstand voltage Uimp
-kV
With interlocking device
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
