Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Leakage current typeAC
Over voltage category-
Surge current capacity0.25kA
Release characteristicB
Rated fault current0.03A
Pollution degree2
Rated current25A
Rated voltage230V
Current limiting class3
Rated insulation voltage Ui-V
Frequency50 Hz
Number of protected poles1
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to IEC 60947-26kA
Width in number of modular spacings2
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Ambient temperature during operating-25 - 70°C
With interlocking deviceYes
Degree of protection (IP)IP20
Number of poles (total)2
Connectable conductor cross section multi-wired0.75 - 10mm²
Connectable conductor cross section solid-core0.75 - 16mm²
Concurrently switching neutral conductorYes
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

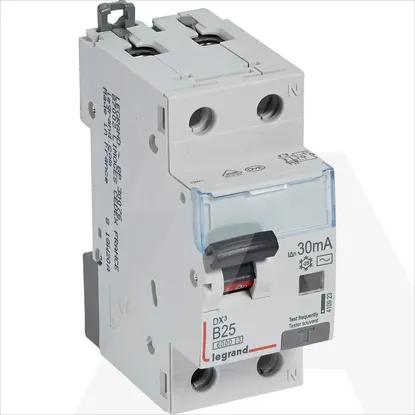

410923 | KZS DX3 1P+N B25 10KA AC 30MA
