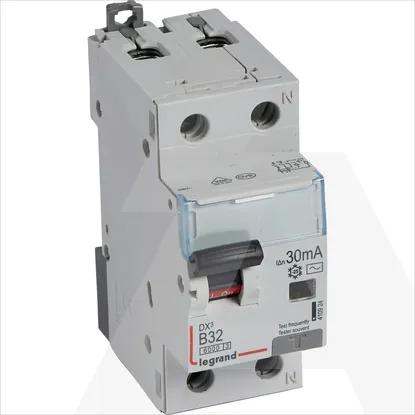

410924 | KZS DX3 1P+N B32 10KA AC 30MA
Code: 1778757
Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Voltage typeAC
Width in number of modular spacings2
Suitable for flush-mounted installationYes
Rated current32A
Rated voltage230V
Built-in depth44mm
Release characteristicB
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core0.75 - 16mm²
Number of protected poles1
Rated insulation voltage Ui-V
Rated impulse withstand voltage Uimp-kV
Current limiting class3
Number of poles (total)2
Pollution degree2
Connectable conductor cross section multi-wired0.75 - 10mm²
Concurrently switching neutral conductorYes
Over voltage category-
Frequency50 Hz
Leakage current typeAC
With interlocking deviceYes
Surge current capacity0.25kA
Rated fault current0.03A
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-26kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
