Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current40A
Rated voltage230V
Release characteristicB
Built-in depth44mm
Leakage current typeAC
Current limiting class3
Rated insulation voltage Ui-V
Voltage typeAC
Over voltage category-
Rated fault current0.03A
Surge current capacity0.25kA
Pollution degree2
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 10mm²
Width in number of modular spacings2
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to IEC 60947-26kA
Number of poles (total)2
Number of protected poles1
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 16mm²
With interlocking deviceYes
Suitable for flush-mounted installationYes
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

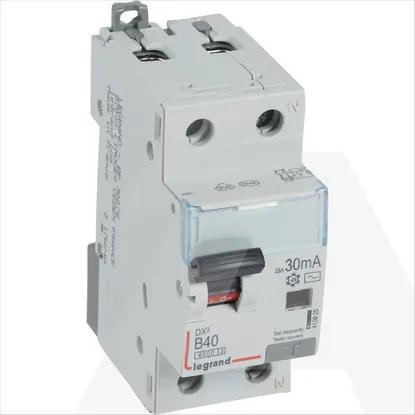

410925 | KZS DX3 1P+N B40 10KA AC 30MA
