Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current13A
Current limiting class3
Width in number of modular spacings2
Surge current capacity0.25kA
Voltage typeAC
Release characteristicB
Built-in depth44mm
Rated voltage230V
Degree of protection (IP)IP20
Over voltage category-
Pollution degree2
Number of protected poles1
Rated insulation voltage Ui-V
Leakage current typeA
Rated fault current0.03A
Frequency50 Hz
Rated short-circuit breaking capacity according to IEC 60947-210kA
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core0.75 - 16mm²
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Anti-nuisance tripping versionNo
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

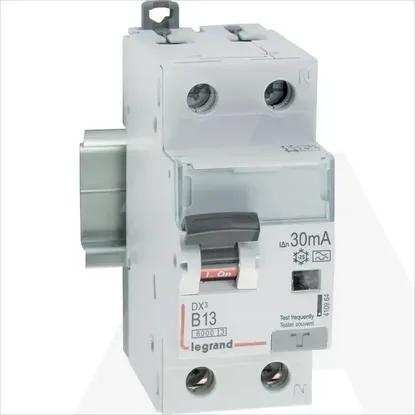

410964 | KZS DX3 1P+N B13 10KA 30MA A
