Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Width in number of modular spacings2
Rated current16A
Rated fault current0.03A
Number of protected poles1
Rated voltage230V
Leakage current typeA
Degree of protection (IP)IP20
Surge current capacity0.25kA
Built-in depth44mm
Current limiting class3
Concurrently switching neutral conductorYes
Frequency50 Hz
Voltage typeAC
Over voltage category-
Rated insulation voltage Ui-V
Pollution degree2
Rated short-circuit breaking capacity according to IEC 60947-26kA
Suitable for flush-mounted installationYes
Release characteristicB
Connectable conductor cross section solid-core0.75 - 16mm²
Number of poles (total)2
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

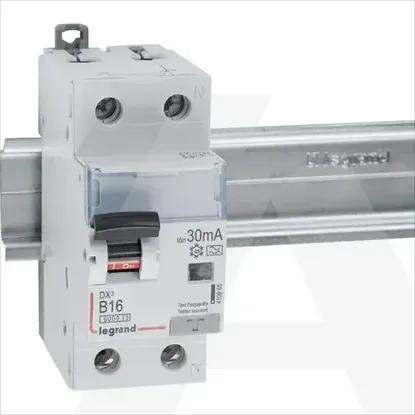

410965 | KZS DX3 1P+N B16 10KA 30MA A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Width in number of modular spacings
2
Rated current
16A
Rated fault current
0.03A
Number of protected poles
1
Rated voltage
230V
Leakage current type
A
Degree of protection (IP)
IP20
Surge current capacity
0.25kA
Built-in depth
44mm
Current limiting class
3
Concurrently switching neutral conductor
Frequency
50 Hz
Voltage type
AC
Over voltage category
-
Rated insulation voltage Ui
-V
Pollution degree
2
Rated short-circuit breaking capacity according to IEC 60947-2
6kA
Suitable for flush-mounted installation
Release characteristic
B
Connectable conductor cross section solid-core
0.75 .. 16mm²
Number of poles (total)
2
With interlocking device
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Ambient temperature during operating
- .. -°C
Anti-nuisance tripping version
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
