Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current20A
Built-in depth44mm
Over voltage category-
Rated voltage230V
Concurrently switching neutral conductorYes
Number of protected poles1
Voltage typeAC
Surge current capacity0.25kA
Degree of protection (IP)IP20
Rated insulation voltage Ui-V
Width in number of modular spacings2
Rated fault current0.03A
Current limiting class3
Leakage current typeA
Frequency50 Hz
Pollution degree2
Release characteristicB
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section solid-core0.75 - 16mm²
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
With interlocking deviceYes
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-26kA
Ambient temperature during operating- - -°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

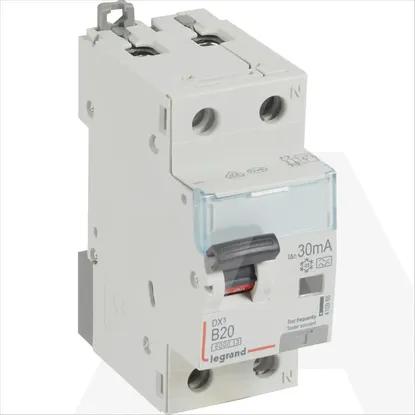

410966 | KZS DX3 1P+N B20 10KA 30MA A
