Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated voltage230V
Rated current32A
Surge current capacity0.25kA
Release characteristicB
Degree of protection (IP)IP20
Current limiting class3
Pollution degree2
Concurrently switching neutral conductorYes
Rated insulation voltage Ui-V
Over voltage category-
Frequency50 Hz
Number of protected poles1
Suitable for flush-mounted installationYes
Width in number of modular spacings2
Leakage current typeA
Ambient temperature during operating- - -°C
Rated fault current0.03A
Connectable conductor cross section solid-core0.75 - 16mm²
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-26kA
Number of poles (total)2
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

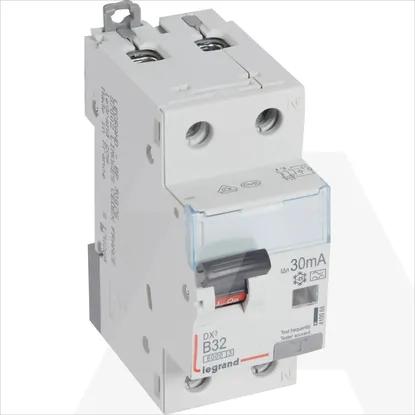

410968 | KZS DX3 1P+N B32 10KA 30MA A
