Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Frequency50 Hz
Rated current40A
Rated fault current0.03A
Release characteristicB
Rated voltage230V
Width in number of modular spacings2
Current limiting class3
Leakage current typeA
Degree of protection (IP)IP20
Rated insulation voltage Ui-V
Built-in depth44mm
Over voltage category-
Pollution degree2
Number of protected poles1
Surge current capacity0.25kA
Rated short-circuit breaking capacity according to IEC 60947-26kA
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationYes
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of poles (total)2
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

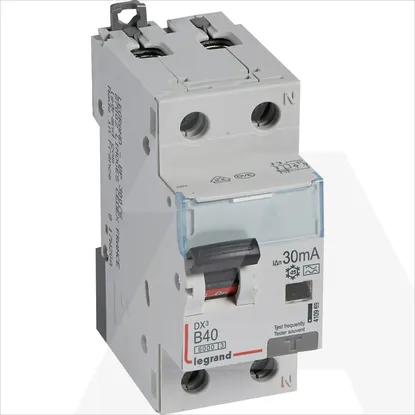

410969 | KZS DX3 1P+N B40 10KA 30MA A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Frequency
50 Hz
Rated current
40A
Rated fault current
0.03A
Release characteristic
B
Rated voltage
230V
Width in number of modular spacings
2
Current limiting class
3
Leakage current type
A
Degree of protection (IP)
IP20
Rated insulation voltage Ui
-V
Built-in depth
44mm
Over voltage category
-
Pollution degree
2
Number of protected poles
1
Surge current capacity
0.25kA
Rated short-circuit breaking capacity according to IEC 60947-2
6kA
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Ambient temperature during operating
- .. -°C
Anti-nuisance tripping version
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Number of poles (total)
2
With interlocking device
Rated short-circuit breaking capacity according to EN 61009
6kA
Connectable conductor cross section solid-core
0.75 .. 16mm²
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Rated impulse withstand voltage Uimp
-kV
