Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Release characteristicB
Number of protected poles1
Concurrently switching neutral conductorYes
Rated current20A
Connectable conductor cross section solid-core0.75 - 16mm²
Rated insulation voltage Ui-V
Number of poles (total)2
Current limiting class3
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Rated voltage230V
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
With interlocking deviceYes
Rated impulse withstand voltage Uimp-kV
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Surge current capacity0.25kA
Width in number of modular spacings2
Built-in depth44mm
Pollution degree2
Frequency50 Hz
Over voltage category-
Leakage current typeAC
Rated fault current0.03A
Rated short-circuit breaking capacity according to EN 6100910kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

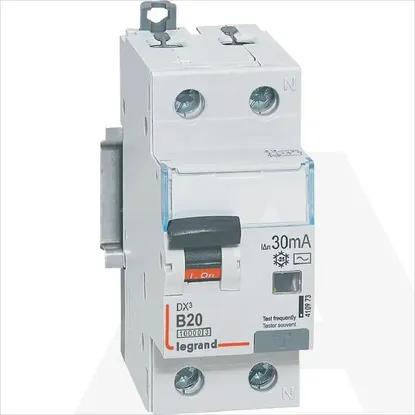

410973 | KZS DX3 1P+N B20 10KA AC 30MA
