Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeAC
Rated insulation voltage Ui-V
Rated voltage230V
Rated fault current0.03A
Built-in depth44mm
Voltage typeAC
Release characteristicB
Rated current32A
Over voltage category-
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles1
Frequency50 Hz
Width in number of modular spacings2
Current limiting class3
Concurrently switching neutral conductorYes
Pollution degree2
Degree of protection (IP)IP20
Surge current capacity0.25kA
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Connectable conductor cross section solid-core0.75 - 16mm²
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Number of poles (total)2
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

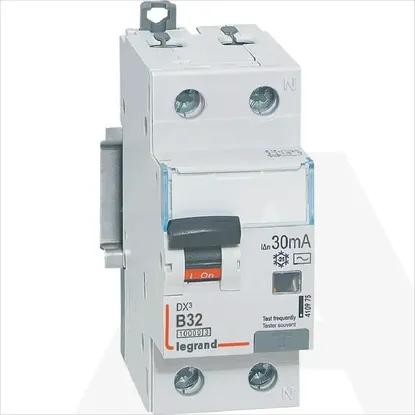

410975 | KZS DX3 1P+N B32 10KA AC 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Leakage current type
AC
Rated insulation voltage Ui
-V
Rated voltage
230V
Rated fault current
0.03A
Built-in depth
44mm
Voltage type
AC
Release characteristic
B
Rated current
32A
Over voltage category
-
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Number of protected poles
1
Frequency
50 Hz
Width in number of modular spacings
2
Current limiting class
3
Concurrently switching neutral conductor
Pollution degree
2
Degree of protection (IP)
IP20
Surge current capacity
0.25kA
Ambient temperature during operating
- .. -°C
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Connectable conductor cross section solid-core
0.75 .. 16mm²
Anti-nuisance tripping version
Rated impulse withstand voltage Uimp
-kV
Number of poles (total)
2
With interlocking device
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Suitable for flush-mounted installation
Rated short-circuit breaking capacity according to EN 61009
10kA
