Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicB
Rated fault current0.03A
Rated voltage230V
Leakage current typeAC
Voltage typeAC
Built-in depth44mm
Surge current capacity0.25kA
Width in number of modular spacings2
Pollution degree2
Current limiting class3
Rated current40A
Over voltage category-
Rated insulation voltage Ui-V
Frequency50 Hz
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to EN 6100910kA
Number of protected poles1
Concurrently switching neutral conductorYes
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core0.75 - 16mm²
With interlocking deviceYes
Anti-nuisance tripping versionNo
Number of poles (total)2
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

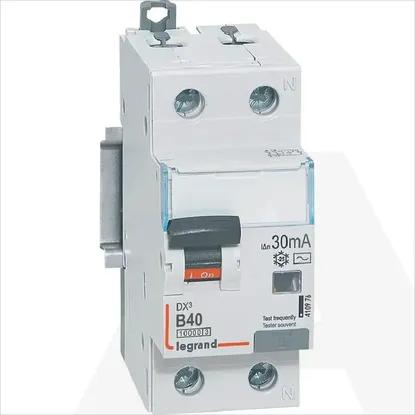

410976 | KZS DX3 1P+N B40 10KA AC 30MA
