Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated current16A
Voltage typeAC
Rated insulation voltage Ui-V
Rated voltage230V
Rated fault current0.03A
Release characteristicC
Leakage current typeAC
Surge current capacity0.25kA
Degree of protection (IP)IP20
Pollution degree2
Current limiting class3
Number of protected poles1
Concurrently switching neutral conductorYes
Frequency50 Hz
Rated short-circuit breaking capacity according to IEC 60947-210kA
Width in number of modular spacings2
Rated short-circuit breaking capacity according to EN 6100910kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Suitable for flush-mounted installationYes
Number of poles (total)2
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
With interlocking deviceYes
Anti-nuisance tripping versionNo
Connectable conductor cross section solid-core0.75 - 16mm²
Over voltage category-
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

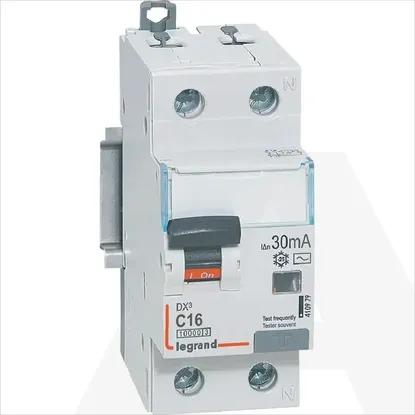

410979 | KZS DX3 1P+N C16 10KA AC 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Rated current
16A
Voltage type
AC
Rated insulation voltage Ui
-V
Rated voltage
230V
Rated fault current
0.03A
Release characteristic
C
Leakage current type
AC
Surge current capacity
0.25kA
Degree of protection (IP)
IP20
Pollution degree
2
Current limiting class
3
Number of protected poles
1
Concurrently switching neutral conductor
Frequency
50 Hz
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Width in number of modular spacings
2
Rated short-circuit breaking capacity according to EN 61009
10kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Suitable for flush-mounted installation
Number of poles (total)
2
Ambient temperature during operating
- .. -°C
Connectable conductor cross section multi-wired
0.75 .. 10mm²
With interlocking device
Anti-nuisance tripping version
Connectable conductor cross section solid-core
0.75 .. 16mm²
Over voltage category
-
Rated impulse withstand voltage Uimp
-kV
