Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity0.25kA
Voltage typeAC
Built-in depth44mm
Rated fault current0.03A
Rated current25A
Rated insulation voltage Ui-V
Release characteristicC
Leakage current typeAC
Rated voltage230V
Degree of protection (IP)IP20
Over voltage category-
Pollution degree2
Frequency50 Hz
Current limiting class3
Number of protected poles1
Width in number of modular spacings2
Connectable conductor cross section solid-core0.75 - 16mm²
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorYes
Number of poles (total)2
Connectable conductor cross section multi-wired0.75 - 10mm²
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

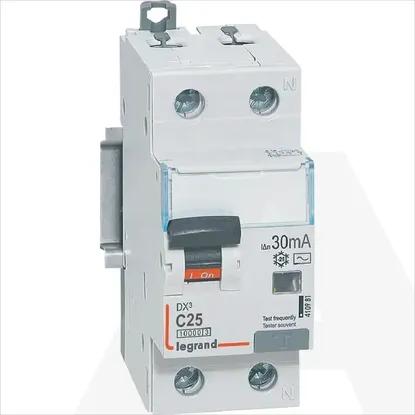

410981 | KZS DX3 1P+N C25 10KA AC 30MA
