Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current32A
Frequency50 Hz
Built-in depth44mm
Voltage typeAC
Surge current capacity0.25kA
Over voltage category-
With interlocking deviceYes
Pollution degree2
Concurrently switching neutral conductorYes
Release characteristicC
Rated insulation voltage Ui-V
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Width in number of modular spacings2
Current limiting class3
Rated fault current0.03A
Number of protected poles1
Connectable conductor cross section multi-wired0.75 - 10mm²
Leakage current typeAC
Rated voltage230V
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Number of poles (total)2
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

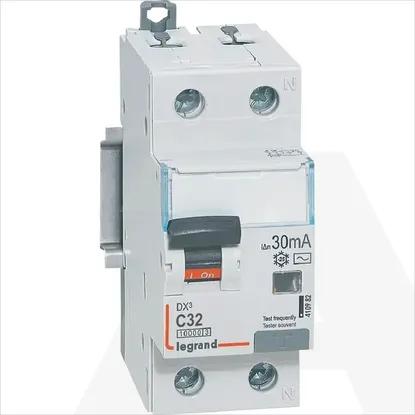

410982 | KZS DX3 1P+N C32 10KA AC 30MA
