Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeAC
Over voltage category-
Pollution degree2
Voltage typeAC
Built-in depth44mm
Rated insulation voltage Ui-V
Degree of protection (IP)IP20
Frequency50 Hz
Surge current capacity0.25kA
Rated fault current0.01A
Width in number of modular spacings2
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 16mm²
Current limiting class3
Concurrently switching neutral conductorYes
Rated voltage230V
Suitable for flush-mounted installationYes
Release characteristicC
Rated current16A
Rated short-circuit breaking capacity according to IEC 60947-26kA
Anti-nuisance tripping versionNo
Ambient temperature during operating- - -°C
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

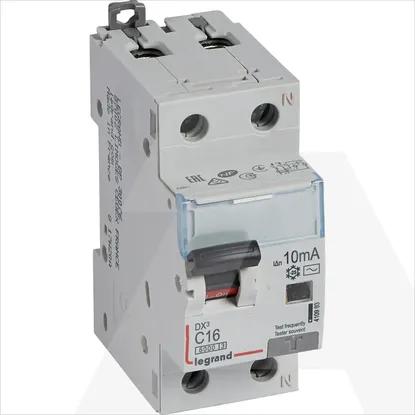

410993 | KZS DX3 1P+ND C16 6KA AC 10MA
