Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Release characteristicC
Voltage typeAC
Rated current6A
Built-in depth44mm
Current limiting class3
Frequency50 Hz
Surge current capacity0.25kA
Number of protected poles1
Rated fault current0.03A
Rated short-circuit breaking capacity according to IEC 60947-26kA
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Degree of protection (IP)IP20
Anti-nuisance tripping versionNo
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 16mm²
Leakage current typeAC
Rated insulation voltage Ui-V
Number of poles (total)2
Width in number of modular spacings2
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorYes
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated impulse withstand voltage Uimp-kV
Over voltage category-
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

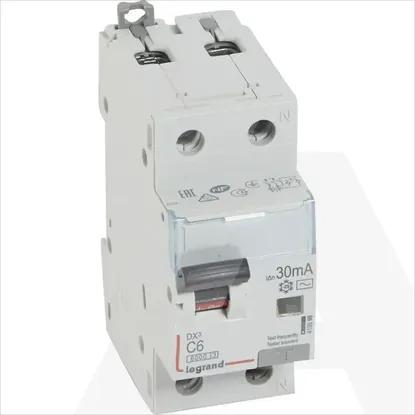

410999 | KZS DX3 1P+ND C6 6KA AC 30MA
