Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated voltage230V
Over voltage category-
Current limiting class3
Pollution degree2
Rated fault current0.03A
Leakage current typeAC
Width in number of modular spacings2
Release characteristicC
Rated insulation voltage Ui-V
Rated current20A
Surge current capacity0.25kA
Built-in depth44mm
Frequency50 Hz
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 16mm²
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-26kA
Suitable for flush-mounted installationYes
Number of protected poles1
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating- - -°C
Number of poles (total)2
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

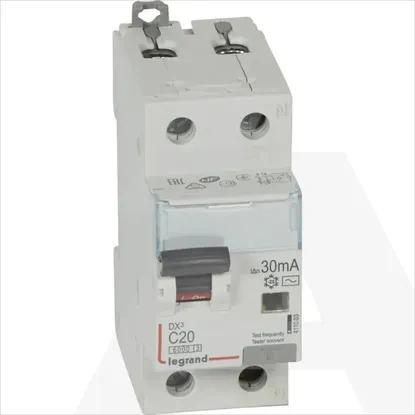

411003 | KZS DX3 1P+ND C20 6KA AC 30MA
