Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated insulation voltage Ui-V
Built-in depth44mm
Rated voltage230V
Release characteristicC
Concurrently switching neutral conductorYes
Surge current capacity0.25kA
Over voltage category-
Width in number of modular spacings2
Number of protected poles1
Current limiting class3
Frequency50 Hz
Pollution degree2
Connectable conductor cross section multi-wired0.75 - 10mm²
Degree of protection (IP)IP20
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity according to IEC 60947-26kA
Suitable for flush-mounted installationYes
With interlocking deviceYes
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Rated current25A
Rated fault current0.03A
Leakage current typeAC
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

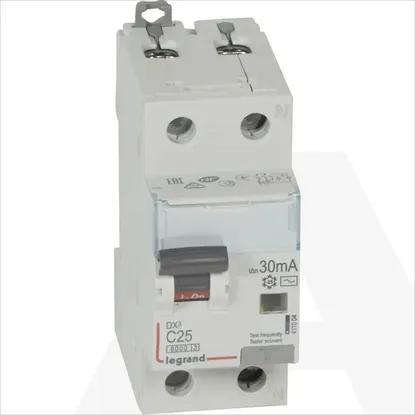

411004 | KZS DX3 1P+ND C25 6KA AC 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Rated insulation voltage Ui
-V
Built-in depth
44mm
Rated voltage
230V
Release characteristic
C
Concurrently switching neutral conductor
Surge current capacity
0.25kA
Over voltage category
-
Width in number of modular spacings
2
Number of protected poles
1
Current limiting class
3
Frequency
50 Hz
Pollution degree
2
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Degree of protection (IP)
IP20
Ambient temperature during operating
- .. -°C
Connectable conductor cross section solid-core
0.75 .. 16mm²
Rated short-circuit breaking capacity according to IEC 60947-2
6kA
Suitable for flush-mounted installation
With interlocking device
Anti-nuisance tripping version
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated current
25A
Rated fault current
0.03A
Leakage current type
AC
Number of poles (total)
2
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
