Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated current40A
Release characteristicC
Rated voltage230V
Rated fault current0.03A
Pollution degree2
Current limiting class3
Over voltage category-
Rated insulation voltage Ui-V
Surge current capacity0.25kA
Leakage current typeAC
Frequency50 Hz
Width in number of modular spacings2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-26kA
Concurrently switching neutral conductorYes
Number of protected poles1
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired0.75 - 10mm²
Suitable for flush-mounted installationYes
With interlocking deviceYes
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

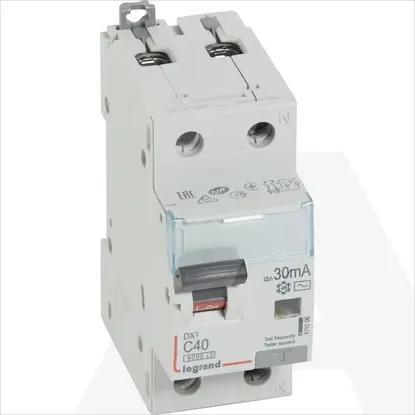

411006 | KZS DX3 1P+ND C40 6KA AC 30MA
