Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated current10A
Voltage typeAC
Rated voltage230V
Release characteristicC
Rated insulation voltage Ui-V
Number of protected poles1
Width in number of modular spacings2
Current limiting class3
Leakage current typeAC
Surge current capacity0.25kA
Frequency50 Hz
Pollution degree2
Over voltage category-
Degree of protection (IP)IP20
Rated fault current0.3A
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity according to IEC 60947-26kA
With interlocking deviceYes
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating- - -°C
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

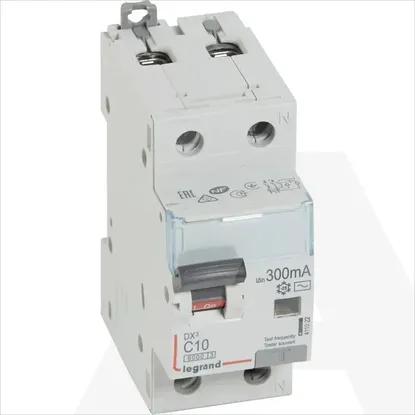

411022 | KZS DX3 1P+ND C10 6KA AC 300MA
