Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Frequency50 Hz
Rated voltage230V
Surge current capacity0.25kA
Number of protected poles1
Rated current16A
Rated fault current0.3A
Pollution degree2
Over voltage category-
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Concurrently switching neutral conductorYes
Anti-nuisance tripping versionNo
With interlocking deviceYes
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
Leakage current typeAC
Width in number of modular spacings2
Connectable conductor cross section solid-core0.75 - 16mm²
Current limiting class3
Rated insulation voltage Ui-V
Number of poles (total)2
Suitable for flush-mounted installationYes
Release characteristicC
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-26kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

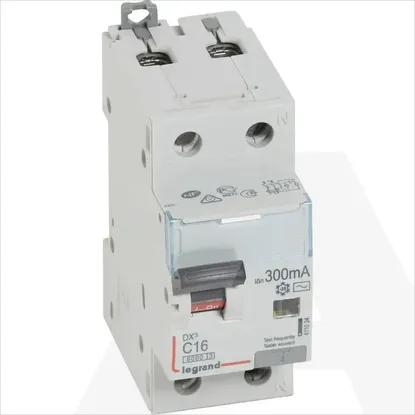

411024 | KZS DX3 1P+ND C16 6KA AC 300MA
