Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated voltage230V
Built-in depth44mm
Rated current25A
Release characteristicC
Surge current capacity0.25kA
Pollution degree2
Rated short-circuit breaking capacity according to IEC 60947-26kA
Number of protected poles1
Suitable for flush-mounted installationYes
Over voltage category-
Connectable conductor cross section solid-core0.75 - 16mm²
Concurrently switching neutral conductorYes
Current limiting class3
Leakage current typeAC
Width in number of modular spacings2
Rated fault current0.3A
Degree of protection (IP)IP20
Anti-nuisance tripping versionNo
Ambient temperature during operating- - -°C
Frequency50 Hz
Number of poles (total)2
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Rated insulation voltage Ui-V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

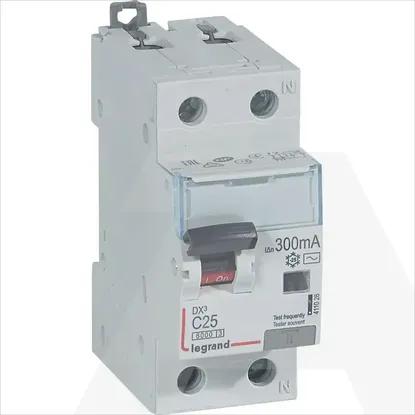

411026 | KZS DX3 1P+ND C25 6KA AC 300MA
