Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Current limiting class3
Release characteristicC
Rated fault current0.01A
Rated insulation voltage Ui-V
Rated voltage230V
Over voltage category-
Rated current16A
Surge current capacity0.25kA
Leakage current typeA
Voltage typeAC
Pollution degree2
Width in number of modular spacings2
Rated impulse withstand voltage Uimp-kV
Connectable conductor cross section solid-core0.75 - 16mm²
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Suitable for flush-mounted installationYes
Frequency50 Hz
Number of poles (total)2
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to EN 610096kA
Number of protected poles1
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to IEC 60947-26kA
Degree of protection (IP)IP20
Anti-nuisance tripping versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

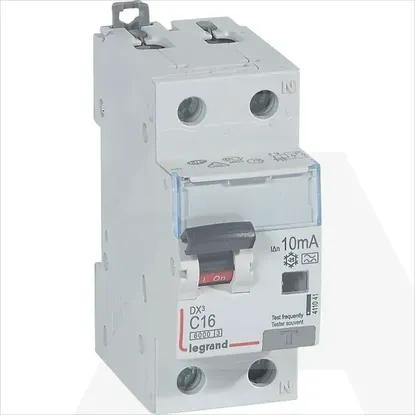

411041 | KZS DX3 1P+ND C16 6KA A 10MA
