Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated fault current0.03A
Voltage typeAC
Leakage current typeA
Surge current capacity0.25kA
Release characteristicC
Rated voltage230V
Over voltage category-
Current limiting class3
Pollution degree2
Rated current25A
Rated insulation voltage Ui-V
Width in number of modular spacings2
Rated short-circuit breaking capacity according to IEC 60947-26kA
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core0.75 - 16mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Number of protected poles1
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionNo
With interlocking deviceYes
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 10mm²
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp-kV
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

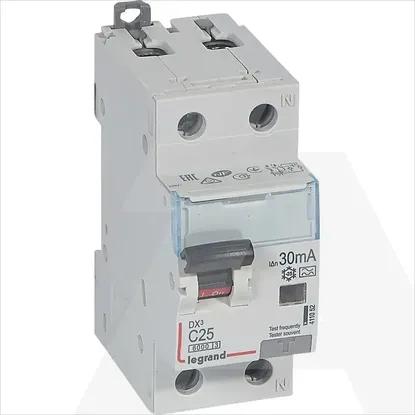

411052 | KZS DX3 1P+ND C25 6KA A 30MA
