Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui-V
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Current limiting class3
Number of protected poles1
Built-in depth44mm
Surge current capacity0.25kA
Release characteristicC
Pollution degree2
Suitable for flush-mounted installationYes
Frequency50 Hz
Voltage typeAC
Rated short-circuit breaking capacity according to IEC 60947-26kA
Rated current40A
Width in number of modular spacings2
Leakage current typeA
Over voltage category-
Rated voltage230V
Connectable conductor cross section solid-core0.75 - 16mm²
Rated fault current0.03A
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionNo
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

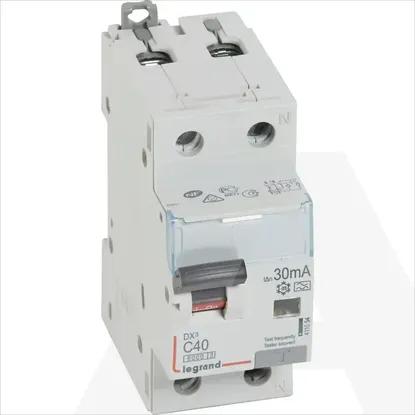

411054 | KZS DX3 1P+ND C40 6KA A 30MA
