Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated voltage230V
Rated fault current0.03A
Current limiting class3
Rated current6A
Number of protected poles1
Frequency50 Hz
Surge current capacity0.25kA
Release characteristicC
Degree of protection (IP)IP20
Pollution degree2
Width in number of modular spacings2
Rated insulation voltage Ui-V
Leakage current typeA
Rated short-circuit breaking capacity according to IEC 60947-26kA
Over voltage category-
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Connectable conductor cross section solid-core0.75 - 16mm²
Suitable for flush-mounted installationYes
With interlocking deviceYes
Ambient temperature during operating- - -°C
Number of poles (total)2
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

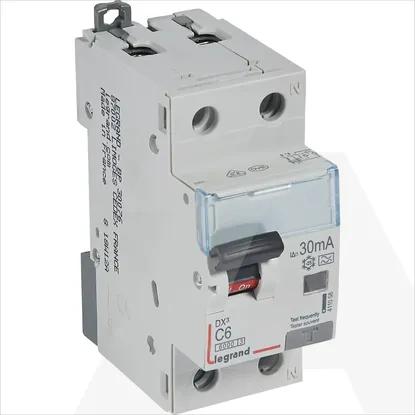

411058 | KZS DX3 1P+N C6 10KA A 30MA
