Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated current25A
Voltage typeAC
Rated fault current0.03A
Rated voltage230V
Release characteristicC
Rated insulation voltage Ui-V
Over voltage category-
Current limiting class3
Number of protected poles1
Suitable for flush-mounted installationYes
Width in number of modular spacings2
Leakage current typeA
Rated short-circuit breaking capacity according to EN 610096kA
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-26kA
Anti-nuisance tripping versionNo
Frequency50 Hz
Rated impulse withstand voltage Uimp-kV
Degree of protection (IP)IP20
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Pollution degree2
Connectable conductor cross section solid-core0.75 - 16mm²
With interlocking deviceYes
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
Surge current capacity0.25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

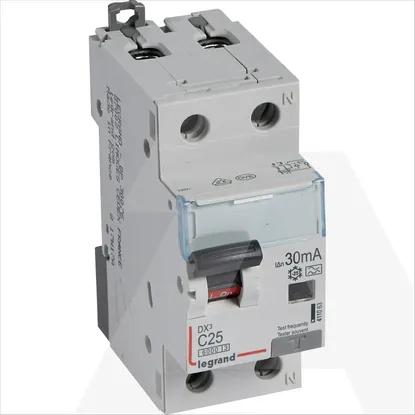

411063 | KZS DX3 1P+N C25 10KA A 30MA
