Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Current limiting class3
Over voltage category-
Release characteristicC
Frequency50 Hz
Suitable for flush-mounted installationYes
Pollution degree2
Connectable conductor cross section solid-core0.75 - 16mm²
Rated voltage230V
Built-in depth44mm
Rated current16A
Voltage typeAC
Rated fault current0.3A
Concurrently switching neutral conductorYes
Surge current capacity0.25kA
Number of protected poles1
Degree of protection (IP)IP20
Rated insulation voltage Ui-V
Rated short-circuit breaking capacity according to IEC 60947-26kA
Width in number of modular spacings2
Leakage current typeA
Connectable conductor cross section multi-wired0.75 - 10mm²
With interlocking deviceYes
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

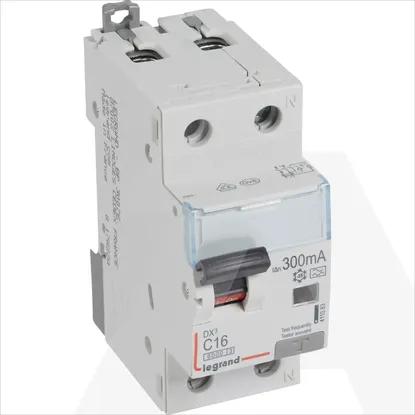

411083 | KZS DX3 1P+N C16 10KA A 300MA
