Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Number of poles (total)2
Ambient temperature during operating- - -°C
Rated fault current0.03A
With interlocking deviceYes
Pollution degree2
Leakage current typeF
Voltage typeAC
Over voltage category-
Rated insulation voltage Ui-V
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorYes
Release characteristicC
Number of protected poles1
Rated voltage230V
Connectable conductor cross section multi-wired0.75 - 10mm²
Degree of protection (IP)IP20
Built-in depth44mm
Current limiting class3
Rated short-circuit breaking capacity according to IEC 60947-26kA
Connectable conductor cross section solid-core0.75 - 16mm²
Surge current capacity3kA
Frequency50 Hz
Width in number of modular spacings2
Rated current16A
Anti-nuisance tripping versionYes
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

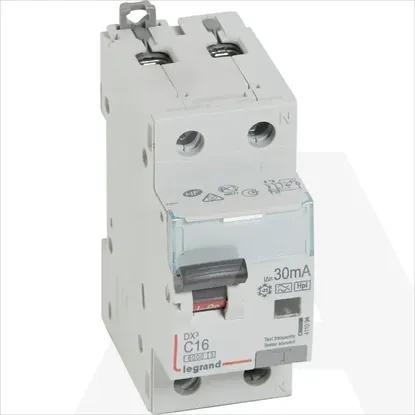

411094 | KZS DX3 1P+ND C16 6KA HPI 30MA
