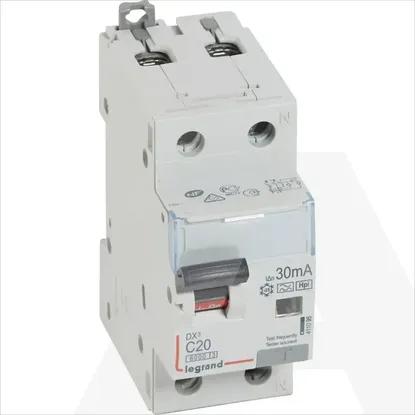

411095 | KZS DX3 1P+ND C20 6KA HPI 30MA
Code: 1778826
ManufacturerLegrand
Catalog number411095
TypeLegrand 411095
CategoryEarth leakage circuit breaker
EAN code3245064110952
Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated insulation voltage Ui-V
Release characteristicC
Rated voltage230V
Built-in depth44mm
Over voltage category-
Surge current capacity3kA
Pollution degree2
Current limiting class3
Frequency50 Hz
Number of protected poles1
Degree of protection (IP)IP20
Width in number of modular spacings2
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-26kA
With interlocking deviceYes
Anti-nuisance tripping versionYes
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core0.75 - 16mm²
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Rated current20A
Rated fault current0.03A
Leakage current typeF
Number of poles (total)2
