Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated current25A
Rated voltage230V
Release characteristicC
Rated fault current0.03A
Rated insulation voltage Ui-V
Leakage current typeF
Surge current capacity3kA
Frequency50 Hz
Current limiting class3
Width in number of modular spacings2
Pollution degree2
Over voltage category-
Concurrently switching neutral conductorYes
Number of protected poles1
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 16mm²
Degree of protection (IP)IP20
Number of poles (total)2
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionYes
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity according to IEC 60947-26kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

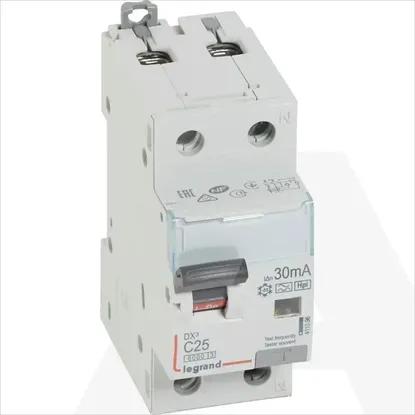

411096 | KZS DX3 1P+ND C25 6KA HPI 30MA
