Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeB+
Frequency50 Hz
Rated insulation voltage Ui-V
Suitable for flush-mounted installationYes
Rated fault current0.03A
Number of protected poles1
Current limiting class3
Rated current32A
Release characteristicC
Surge current capacity3kA
Built-in depth44mm
Over voltage category-
Rated short-circuit breaking capacity according to IEC 60947-26kA
Width in number of modular spacings2
Voltage typeAC
Degree of protection (IP)IP20
Rated voltage230V
Connectable conductor cross section solid-core0.75 - 16mm²
Concurrently switching neutral conductorYes
Pollution degree2
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
With interlocking deviceYes
Anti-nuisance tripping versionYes
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

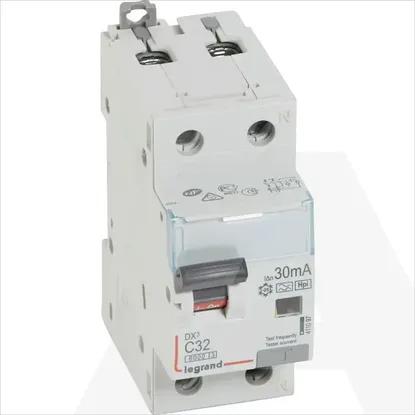

411097 | KZS DX3 1P+ND C32 6KA HPI 30MA
