Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current10A
Built-in depth44mm
Rated fault current0.03A
Leakage current typeF
Width in number of modular spacings2
Current limiting class3
Release characteristicC
Voltage typeAC
Frequency50 Hz
Pollution degree2
Number of protected poles1
Rated voltage240V
Over voltage category-
Degree of protection (IP)IP20
Surge current capacity3kA
Rated insulation voltage Ui-V
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 10mm²
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to IEC 60947-26kA
Suitable for flush-mounted installationYes
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section solid-core0.75 - 16mm²
Number of poles (total)2
Anti-nuisance tripping versionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

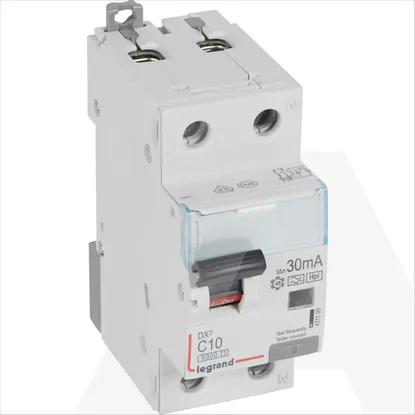

411103 | KZS DX3 1P+N C10 10KA HPI 30MA
