Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Over voltage category-
Surge current capacity3kA
Rated voltage240V
Pollution degree2
Current limiting class3
Voltage typeAC
Leakage current typeF
Width in number of modular spacings2
Rated insulation voltage Ui-V
Rated fault current0.03A
Rated current16A
Release characteristicC
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to IEC 60947-26kA
Number of protected poles1
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 16mm²
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Frequency50 Hz
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

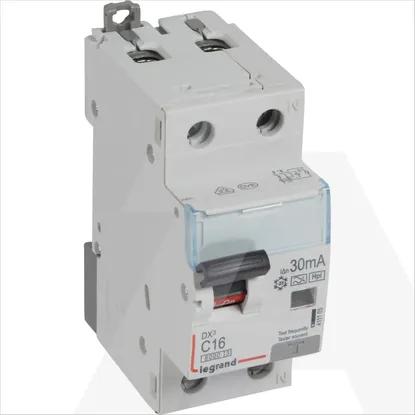

411105 | KZS DX3 1P+N C16 10KA HPI 30MA
