Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Surge current capacity3kA
Rated voltage240V
Rated current20A
Current limiting class3
Rated insulation voltage Ui-V
Release characteristicC
Leakage current typeF
Rated fault current0.03A
Number of protected poles1
Pollution degree2
Over voltage category-
Width in number of modular spacings2
Frequency50 Hz
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 16mm²
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-26kA
Connectable conductor cross section multi-wired0.75 - 10mm²
With interlocking deviceYes
Anti-nuisance tripping versionYes
Number of poles (total)2
Rated impulse withstand voltage Uimp-kV
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

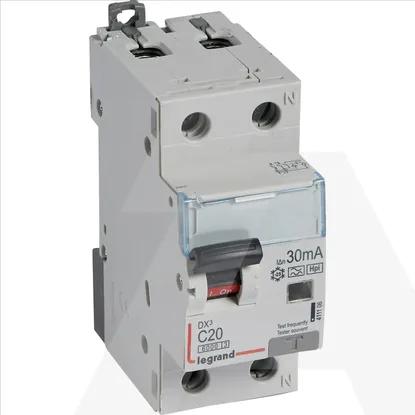

411106 | KZS DX3 1P+N C20 10KA HPI 30MA
