Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity3kA
Rated voltage240V
Built-in depth44mm
Leakage current typeF
Voltage typeAC
Release characteristicC
Rated current40A
Rated fault current0.03A
Rated insulation voltage Ui-V
Width in number of modular spacings2
Over voltage category-
Current limiting class3
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity according to IEC 60947-26kA
Frequency50 Hz
Pollution degree2
Number of protected poles1
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Ambient temperature during operating- - -°C
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Rated short-circuit breaking capacity according to EN 610096kA
Number of poles (total)2
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

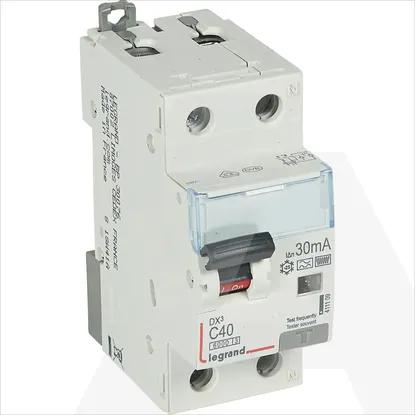

411109 | KZS DX3 1P+N C40 10KA HPI 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Surge current capacity
3kA
Rated voltage
240V
Built-in depth
44mm
Leakage current type
F
Voltage type
AC
Release characteristic
C
Rated current
40A
Rated fault current
0.03A
Rated insulation voltage Ui
-V
Width in number of modular spacings
2
Over voltage category
-
Current limiting class
3
Connectable conductor cross section solid-core
0.75 .. 16mm²
Rated short-circuit breaking capacity according to IEC 60947-2
6kA
Frequency
50 Hz
Pollution degree
2
Number of protected poles
1
Suitable for flush-mounted installation
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Ambient temperature during operating
- .. -°C
With interlocking device
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Rated short-circuit breaking capacity according to EN 61009
6kA
Number of poles (total)
2
Rated impulse withstand voltage Uimp
-kV
Anti-nuisance tripping version
